Wedge Wire Screen Welding Machine

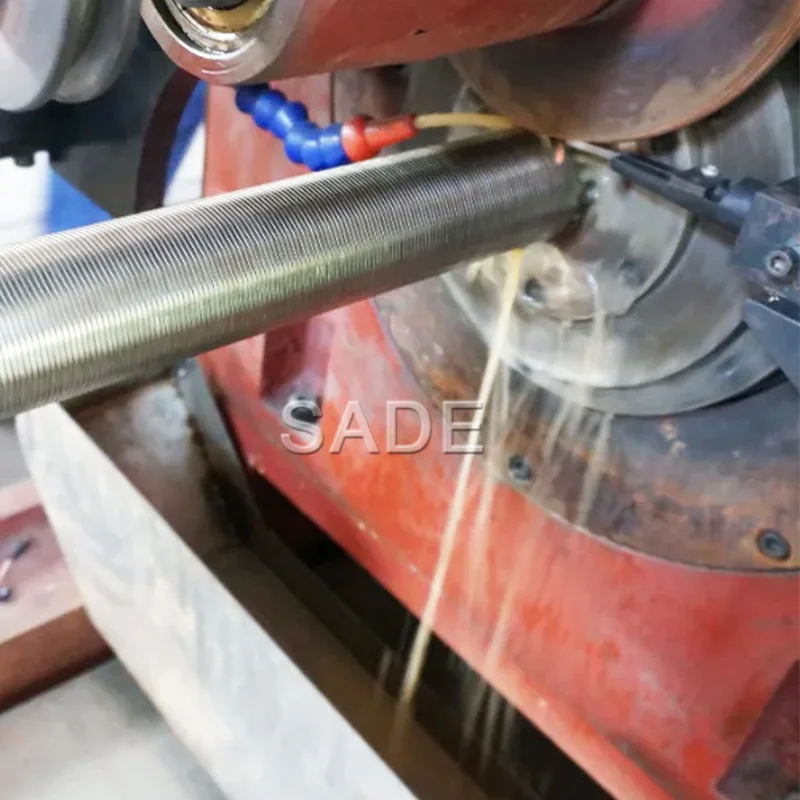

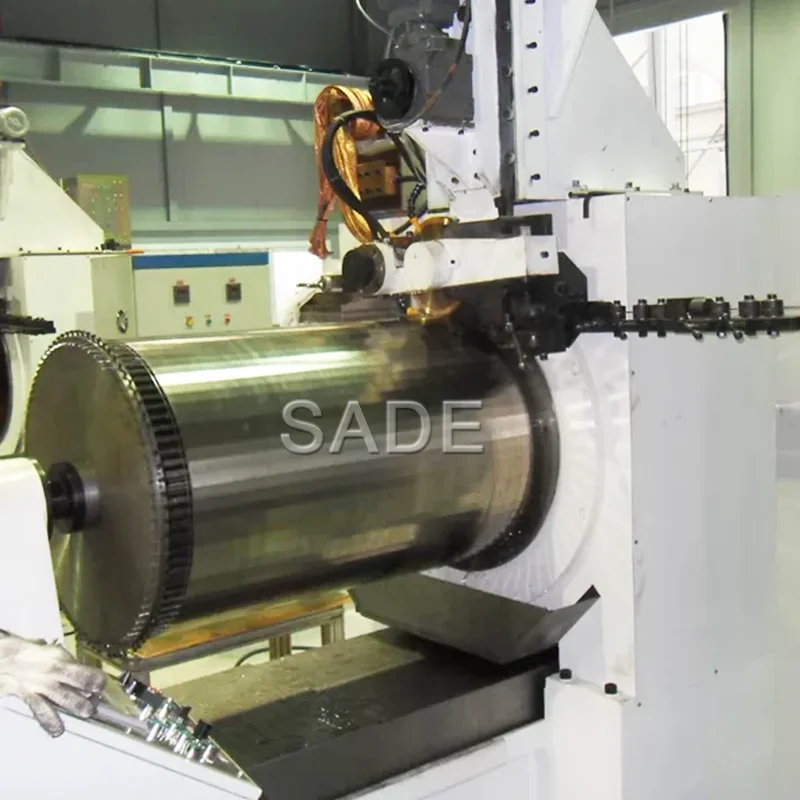

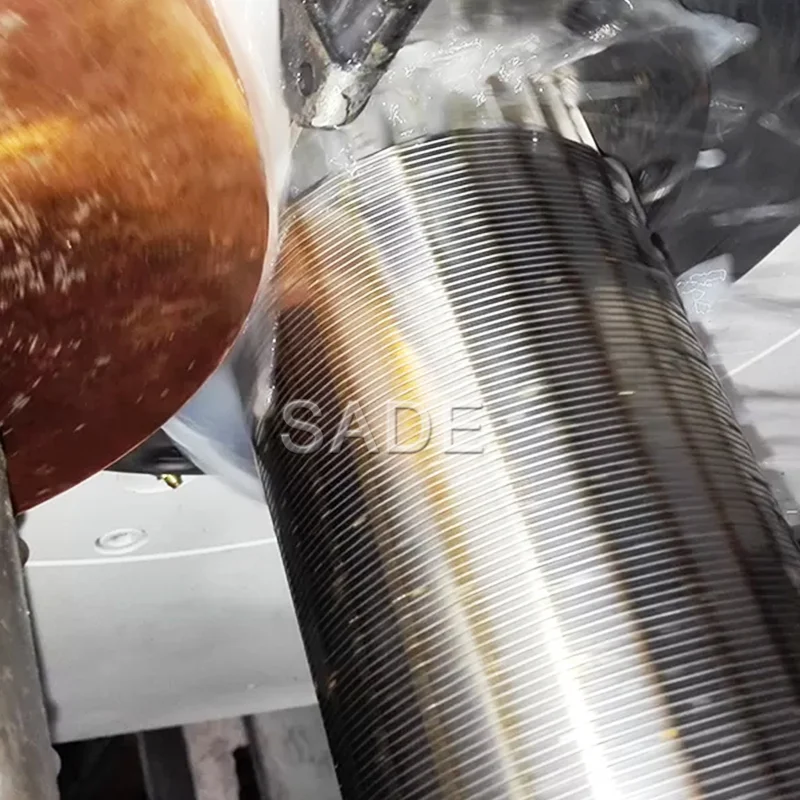

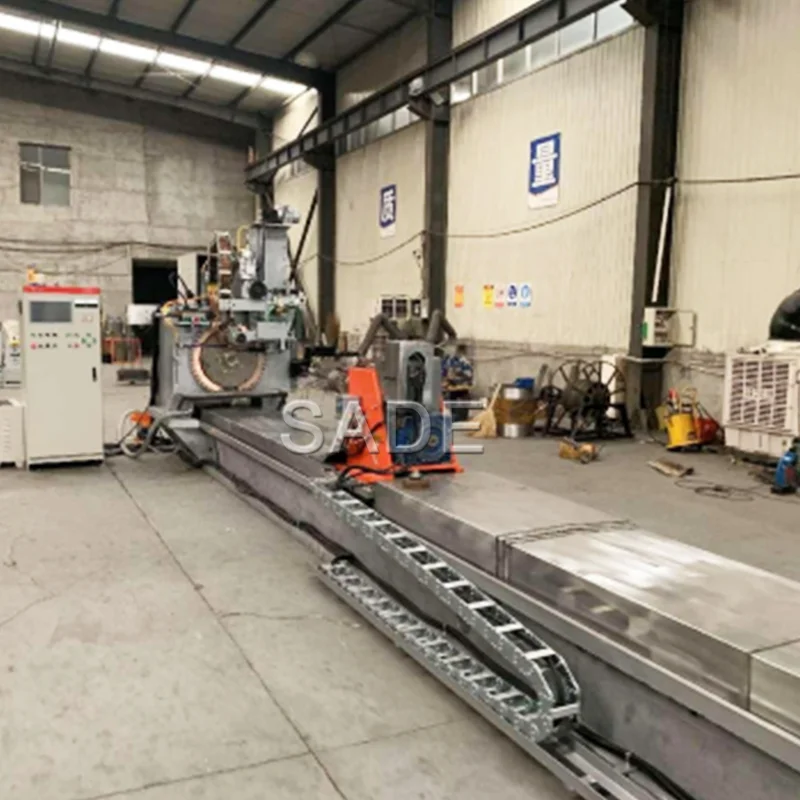

Wedge Wire Screen Welding Machine  is for manufacturing of wedge wire screens in length up to max. 6000 mm. The strength,precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.


Are You ready to
contact with us

+86 13333383421 Contact Us
Product Advantages

1.the Electric Devices Use world famous brand ,high quality keep full machine work at high accuracy and service long life

2.the Machine is controlled by CNC System,The Slot size and length can be adjusted on touch screen,high intelligence, easy operation

3.this machine equipped with Water cooling system,keep full machine work at right temperature when welding



Product Application

The machine is special for making Wedge Wire Screen, Filter Screen, V-shaped wire,Coanda Intake Screens, Cylindrical Screen, Rotary Screen, Flat Screen, Basket Screen,Looped Screen,  Sieve Bend Screen, Intake Screen , for used in Water Treatment, Oil and Gas, Mining and Mineral, Food and Beverage, Pulp and Paper filtration field.


Technique Parameter


MODEL

SWJ-200

SWJ-500

SWJ-1000

SWJ-1200

Max processing length

2000mm

6000mm

6000mm

4000mm

Machinable Diameter

50-200mm

50-500mm

340-1000mm

400-1200mm

Slot size

min0.1mm

min0.1mm

min0.2mm

min0.2mm

Work efficiency

6-30r/min

6-30rmin

6-30r/min

6-30r/min

Allowable error

+0.02mm

+0.02mm

+0.02mm

+0.02mm

Voltage

380V1220V1440V1415V1600V,50160Hz,3 phase

Wire material

S304.S201.SAE1008,SAE1006 etc

Welding transformer

1 00kw

Welding precision

If wire tolerance is within 0.01mm, welding precision will be within +0.04mm.

Weight

8000kg

8000kg

8000kg

8000kg
