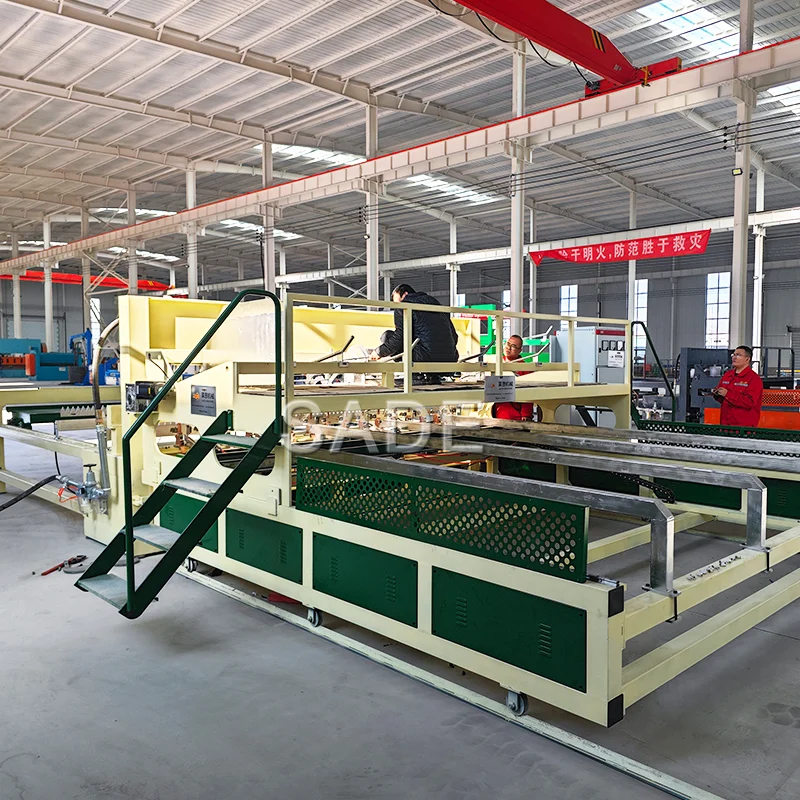

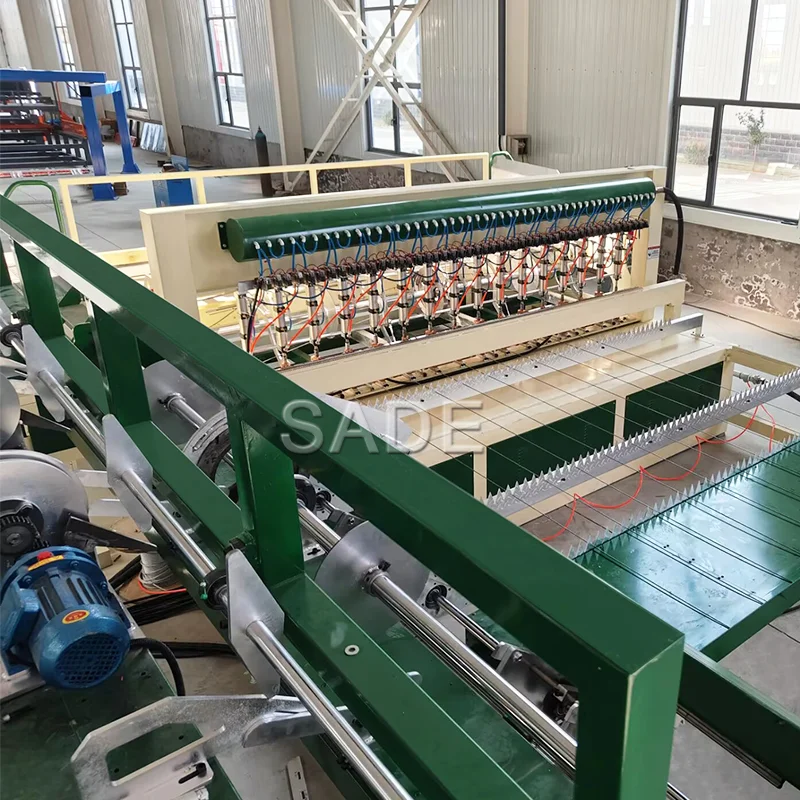

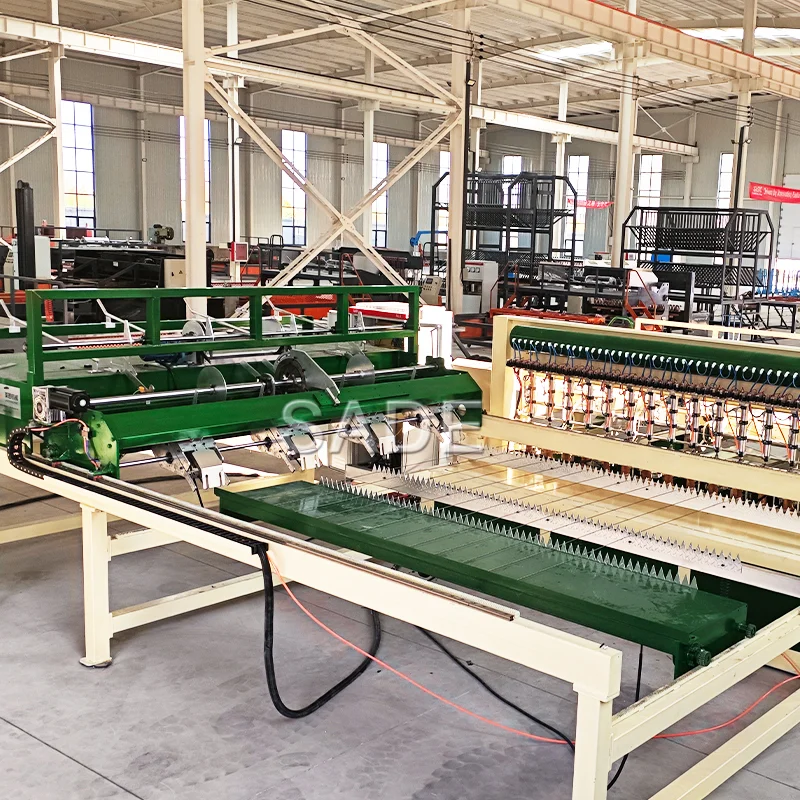

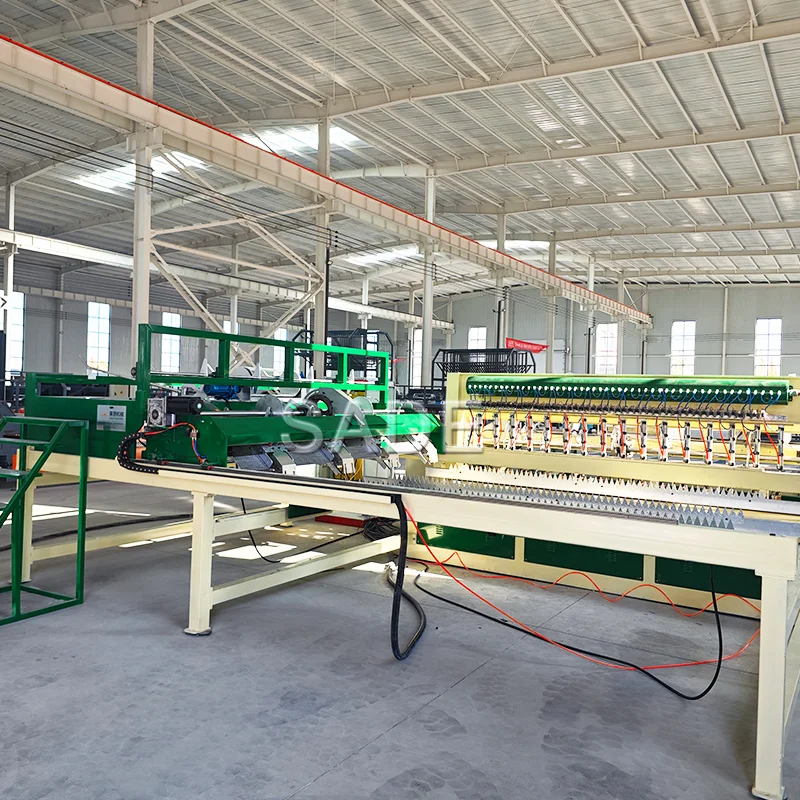

This machine is designed for the production of high-quality welded wire mesh with advanced automatic feeding and welding capabilities. And it adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen and keyboard input panel forms make operation more intellectualized and reasonable.
The biggest advantage of this system is that different mesh size can be welded on the same panel. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handling and high flexibility and high working efficiency achieve a perfect welding machine.
Another advantage is that it has storage devices that can store about 1.5 tons of material, which enables automatic feeding of both warp and weft threads, truly reducing labor costs.
The welded mesh can be used in the fencing protect, floor wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
MODEL | HWJ1200B | HWJ1500B | HWJ2000B | HWJ2500B |
Max mesh width | 1200mm | 1500mm | 2000mm | 2500mm |
Wire diameter | 3-6mm | 3-6mm | 3-6mm | 3-6mm |
Line wire spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
Cross wire spacing | 25-300mm | 25-300mm | 25-300mm | 25-300mm |
Mesh length | Max 6m | Max 6m | Max 6m | Max 6m |
Line wire type | By bars | By bars | By bars | By bars |
Cross wire type | By bars | By bars | By bars | By bars |
Welding speed | 80-100times/min | 80-100times/min | 80-100times/min | 80-100times/min |
Electric power | 160KVA*4 | 160KVA*5 | 160KVA*6 | 160KVA*8 |
